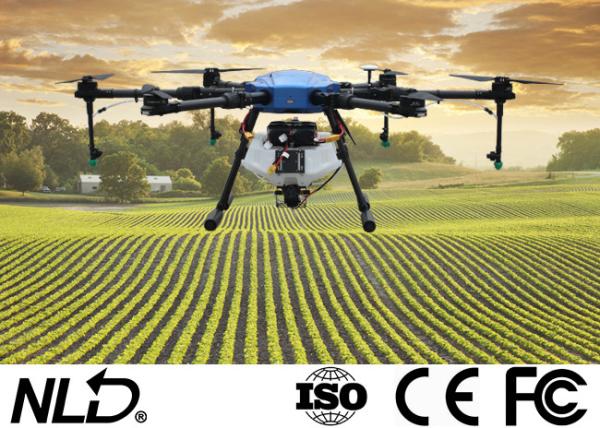

NLA616 Agriculture Spraying Drone Pesticide Tank 16L With GPS

Product Categories

NEW LANDLE TECHNOLOGY CO.,LTD

Contact Now

Brand Name : NLD

Model Number : NLA-610

Certification : ISO9001 CE FCC

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T, D/P, D/A

Supply Ability : 100sets/month.

Delivery Time : 15~25 days

Packaging Details : Aluminum Box

Type : Agriculture Spraying Drone With GPS

Remote Controller : Remote control

Wheelbase : 1407mm

Take-off Capacity : 42kg

Spray Efficiency : 1500~2400sqm/min

Folded Size : 1102*979*600mm

Contact Now

NLA616 Pesticide Tank 16L Agriculture Spraying Drone With GPS

Model	NLA616
Rotor	6
Hovering accuracy horizontal	+/- 1.5m
Hovering accuracy vertical	+/- 0.5m
Wind resistance	4～5
Motor	6*100KV
Electronic Speed Control	80A
Motor applicable temperature	-20～50
Foldable propeller	3090
Pesticide Tank	16L
Take-off Capacity	42kg
Flying Time (with payload)	15~20min
Flying distance	5000m
Working distance	2000m
Flying Speed	0~10m/s
Spray Width	3.5~4m
Spray Flow	1.2~2L/min
Spray Efficiency	1500~2400sqm/min
Expand Size	24282428600mm
Wheelbase	1648mm
Folded Size	1102979600mm
Battery / Quantity	6S 22000mAh / 2pcs
FPV Camera	Optional
Obstacle avoidance radar	Optional
Terrain following radar	Optional
RTK centimeter positioning	Optional

NLA616 Agriculture Spraying Drone Pesticide Tank 16L With GPS

Other models

Model	NLA410	NLA416	NLA610	NLA622	NLA630	NLA650
Rotor	4	4	6	6	6	8
Hovering accuracy horizontal	+/- 1.5m	+/- 1.5m	+/- 1.5m	+/- 1.5m	+/- 1.5m	+/- 1.5m
Hovering accuracy vertical	+/- 0.5m	+/- 0.5m	+/- 0.5m	+/- 0.5m	+/- 0.5m	+/- 0.5m
Wind resistance	4～5	4～5	4～5	4～5	4～5	4～5
Motor	4*100KV	4*110KV	6*180KV
Electronic Speed Control	80A	120A	80A
Motor applicable temperature	-20～50	-20～50	-20～50	-20～50	-20～50	-20～50
Foldable propeller	3090	3411	2388
Pesticide Tank	10L	16L	10L	22L	30L	50L
Take-off Capacity	28kg	38kg	30kg
Flying Time (with payload)	15~20min	15~20min	15~20min	15~20min	15~20min	15~20min
Flying distance	5000m	5000m	5000m	5000m	5000m	5000m
Working distance	2000m	2000m	2000m	2000m	2000m	2000m
Flying Speed	0~10m/s	0~10m/s	0~10m/s	0~10m/s	0~10m/s	0~10m/s
Spray Width	3~3.5m	3~3.5m	3.5~4m	3.5~4m	3.5~4.5m	3.5~5m
Spray Flow	1.2~2L/min	1.2~2L/min	1.2~2L/min	1.5~2.5L/min	1.5~2.5L/min	1.5~3L/min
Spray Efficiency	1000~2100 sqm/min	1000~2100 sqm/min	1500~2400 sqm/min
Expand Size	17801780567 mm	18481848628 mm	19921992562 mm
Wheelbase	1362mm	1416mm	1407mm
Folded Size	700658567 mm	648671628 mm	945848562 mm
Battery / Quantity	6S/16000 mAh / 2pcs	6S/22000 mAh / 2pcs	6S/16000 mAh / 2pcs	6S 22000 mAh / 2pcs	6S 30000 mAh / 2pcs	12S 27000 mAh / 2pcs
FPV Camera	Optional	Optional	Optional	Optional	Optional	Optional
Obstacle avoidance radar	Optional	Optional	Optional	Optional	Optional	Optional
Terrain following radar	Optional	Optional	Optional	Optional	Optional	Optional
RTK centimeter positioning	Optional	Optional	Optional	Optional	Optional	Optional
