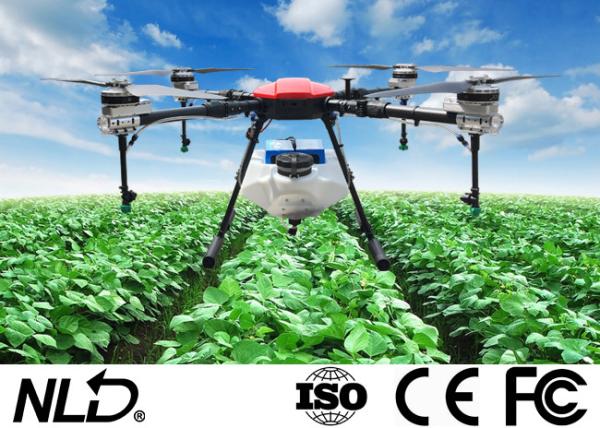

Pesticide Tank 16L Remote Control NLA416 Agriculture Spraying Drone
Quick Details
- Flight controller: 2CPU + 3 IMU
- Material: Carbon Fiber + Aviation Aluminum
- Flight time: 15~20minutes
- Spray width: 3~5m
- Spray efficiency: 6~8 Ha/hour
- Lead time: 15days
| Model | NLA416 |
| Rotor | 4 |
| Hovering accuracy horizontal | +/- 1.5m |
| Hovering accuracy vertical | +/- 0.5m |
| Wind resistance | 4～5 |
| Motor | 4*110KV |
| Electronic Speed Control | 120A |
| Motor applicable temperature | -20～50 |
| Foldable propeller | 3411 |
| Pesticide Tank | 16L |
| Take-off Capacity | 38kg |
| Flying Time (with payload) | 15~20min |
| Flying distance | 5000m |
| Working distance | 2000m |
| Flying Speed | 0~10m/s |
| Spray Width | 3~3.5m |
| Spray Flow | 1.2~2L/min |
| Spray Efficiency | 1000~2100sqm/min |
| Expand Size | 1848*1848*628mm |
| Wheelbase | 1416mm |
| Folded Size | 648*671*628mm |
| Battery / Quantity | 6S/22000mAh / 2pcs |
| FPV Camera | Optional |
| Obstacle avoidance radar | Optional |
| Terrain following radar | Optional |
| RTK centimeter positioning | Optional |

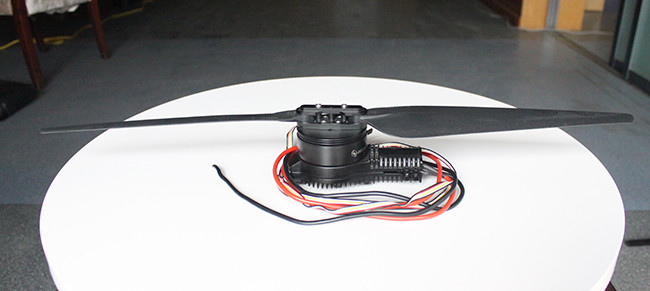

Integrated power system
- The PMSM algorithm based on FOC is optimized to create a perfect dynamic system
- Super protection, easy to deal with the harsh environment of plant protection
- Intelligent multiple redundancy protection, running data real-time output
- Highlight the LED display
- High lift, high efficiency propeller
- Sturdy, reliable and impact resistant
- Modular design, easy maintenance
- support system upgrade
Why choose NEWLANDLE sprayer drone?
1) Stable
Flight controller Dual CPU configuration, Triple redundant IMU, Dual redundant barometer;
2) Effective
Each nozzle is under the propeller, the chemical fog can be directly pressed to all levels of the crop by the strong air flow generated by the propellers.
3) Intelligent
a). One-key take off & land, autonomous fly with way points controlled by Mobile phone APP;
b). Low voltage, no signal, return automatically;
c). Fail safe protection;
d). Spray flow control;
e). Intelligent automatic obstacle avoidance;
f). Intelligent terrain following;
g). FPV Camera;
h). RTK centimeter positioning.
4) Quality control
Every drone is tested and has to pass through a rigorous quality control test to confirm it meets the highest standards in performance and durability.
5) Easy to maintain and repair
We have office and engineer in Indonesia and India, we supply local service in this countries. We always utilize high grade components. The parts are interchangeable and can be replaced by customer self, therefore the maintenance costs are very low.
6) Good service
Customers can get free training in our company; Remote on-line video technical support; One year warranty for drone frame and three months for wearing parts.
