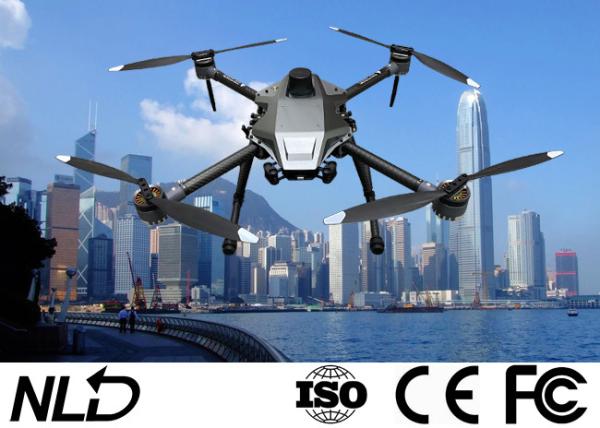

1080P 720P 25FPS 30FPS Aerial Inspection Drone For Fire Fighting Inspection

Brand Name : NLD

Model Number : NIA-Z10TIR-2

Certification : ISO9001 CE FCC

Place of Origin : China

MOQ : 1set

Price : Negotible

Payment Terms : L/C, T/T, D/P, D/A

Supply Ability : 100sets/month

Delivery Time : 20days

Packaging Details : Aluminum Box

Name : Inspection drone

Use : Fire-Fighting inspection

Camera : Thermal infrated camera

Visible light camera : 10 optical zoom

Thermal Imager : 640*480 stardard

Drone : 4 rotors

Contact Now

Fire-Fighting Inspection Drone 640x480 Thermal Imaging Infrared Camera with 10x Optical Zoom 1/3" Panasonic CMOS Sensor

1080P 720P 25FPS 30FPS Aerial Inspection Drone For Fire Fighting Inspection

Application

Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties.

Specification

Hardware Parameter
Working voltage 12~16V	Input voltage 3S~4S
Dynamic current 800~1000mA	Output voltage 5V
Working environment temp. -20~+60°C	Output micro HDMI(FHD 1080P 30fps)/IP(1080P/720P 25/30fps)
Control method PWM/TTL/S.BUS/TCP(IP output version)	Local storage TF card (Up to 128G, class 10, FAT32 or ex FAT format)
Photo storage formate JPG(19201080/1280720)	Video storage formate MP4(1080P/720P 25fps/30fps)

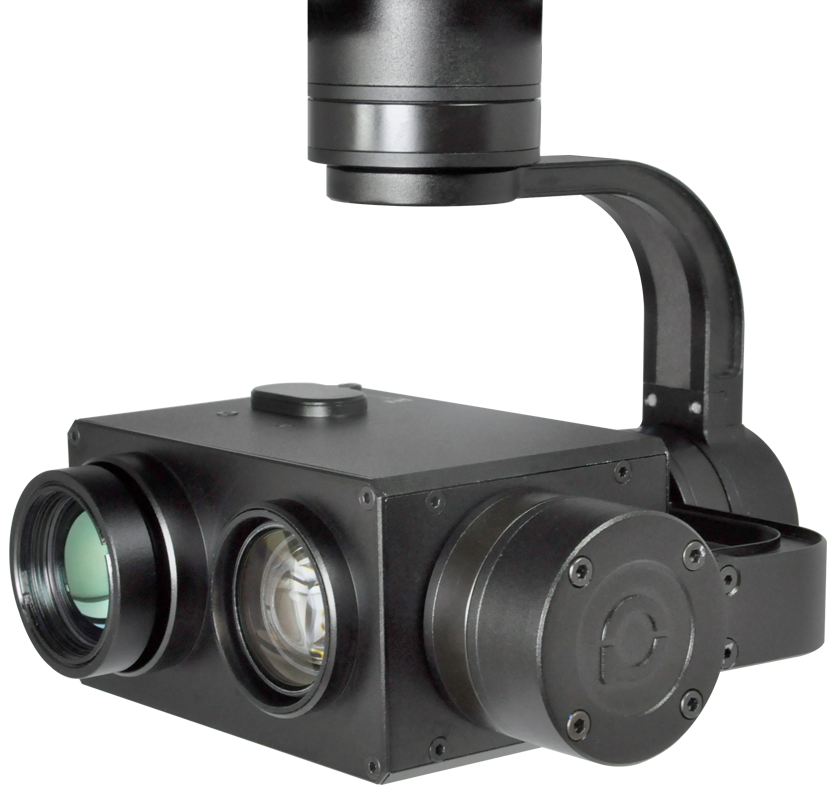

Gimbal specification
Mechanical range	Pitch/Tilt: -125°～120°, Roll: ±60°, Yaw/Pan: ±300° / ±360°*N (IP output version)
Controllable Range	Pitch/Tilt: -45°～90°, Yaw/Pan: ±290° / ±360°*N (IP output version)
Vibration angle	Pitch/Roll: ±0.02°, Yaw:±0.02°
One-key to center	Yes

1080P 720P 25FPS 30FPS Aerial Inspection Drone For Fire Fighting Inspection

RGB camera specifiction
Imager Sensor	1/3" Panasonic CMOS Sensor	Effective pixel	2.48MP
Picture quality	Full HD 1080 (1920*1080)	Lens optical zoom	10x, F=5.1mm~51mm
Field of View (D, H, V)	D: 68°(Wide end) ~ 6.7° (Tele end)	Sync system	Progressive scanning
	H: 54°(wide end) ~ 4.9°(tele end)	Sync. System Internal	Internal
	V: 31°(wide end) ~ 4.0°(tele end)	S/N ratio	more than 50dB
Min illumination	Color : 0.5 lux , BW : 0.1lux	Gain Control (AGC)	Off / On
	Color DSS : 0.125 lux , BW DSS : 0.025 lux	White balance	Auto / One Push / Manual / Indoor / Outdoor
Shutter speed	1/30(25) ~ 1/30,000 sec	Focus	Auto / One Push / Manual
Iris	0 ~ 20 steps	Defog	Yes
Exposure	Mode / AGC / Shut Speed / Iris / DSS / Flickerless / Brightness / WDR/BLC / D&N	OSD	Yes

Configuration

Drone Frame	4-rotor drone frame	1
Flight control	PX4	1
Remote controller	Highlight tablet with Android system / Industrial-grade radio anti-interference ability Remote data transmission and image transmission three in one 1080P HD image transmission / Support Ethernet/HDMI video input	1
Li-battery	Super Lip Battery 12000mah	1
Propeller	2sets each set 4pcs	8
Charger	Smart charger	1
Tools		1
Aluminum box		1

Introduction

NIA-Z10TIR quad rotor industry drone is suitable for smart cities, police safety, road traffic, environmental protection and water conservancy, power line inspection, emergency rescue, oil pipeline inspection, surveying and other fields.
Aircraft size	460x460x250mm	Long battery life	Max 60min
Weight	2.4kgs	Payload	1.5kgs
Max takeoff weight	4kgs	FPV camera	1080P
Work temperature	-10~50℃	Max wind speed	15m/s
