Industrial Grade Drone Fully Waterproof Fuselage For Power Line

Industrial Grade Drone With Fully Waterproof Fuselage For Power Line

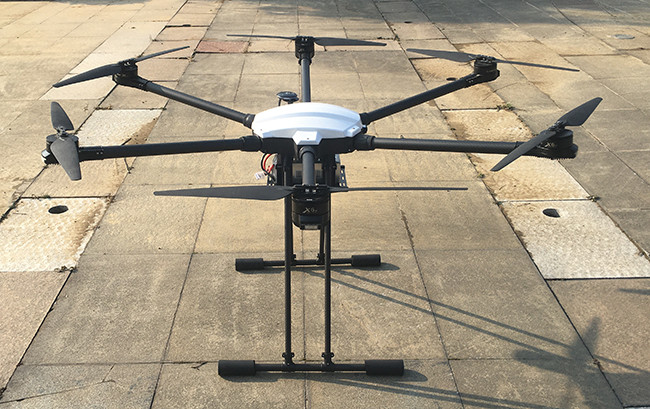

Chassis of Drone

• Fully waterproof fuselage: The fuselage adopts the integrated waterproof design, supports washing (Excluding motor and battery parts), and the shell surface adopts the star-bright white or black coating, with beautiful shape and eye-catching color.
• The whole machine adopts the classic umbrella-shaped folding method, which minimizes the size after folding, and is convenient for storage.

Remote controller

• Ultra long transmission distance: Using the new long-distance image transmission system, with the latest anti-interference radio frequency algorithm, the image remote control distance is as far as 10km, allowing you to explore a wider space without worrying about the flying distance during flight operations.
• 1080P digital HD image transmission: NIRC10-3HDS integrated digital image transmission system, supports HDMI and network port two video source input, supports more video devices such as cameras, PTZ, pods, built-in HD FPV APP, supports video floating window function, can be displayed on any ground station APP Image, support video window scaling of any size, support the original QGroundControl video display function, open the video SDK for video integrated development.
• Removable high-performance lithium battery:The high-performance lithium battery, low internal resistance, 6 hours long battery life, and stable battery curve provide stable power for the iUAV OS system, and can quickly replace the battery to ensure continuous operation
• Highlight HD display: The 5.5-inch high-brightness high-definition display can clearly view real-time display information under strong light conditions.
• Industrial equipment level protection: Unmanned aerial vehicles work in harsh outdoor conditions. The NIRC10-3HDS is protected from dust and splashes on the fuselage, control switches, and peripheral interfaces to ensure stable and smooth operation of the equipment in harsh environments.

Suspension components

N3TC-T320

10x optical zoom +320Thermal imaging +1500m range measuring three-light pod

N3TC-T320 is an integrated 10x optical zoom camera, 320 thermal imager and 1500m laser ranging high-precision special three-axis stabilization pod. The pod adopts compact design and has the characteristics of high stability, small size, light weight and low power consumption. Visible light camera adopts HD sensor with 4 million effective pixels; thermal imaging adopts imported 320x240 resolution detector and Built-in baffle; 1500 meters high precision ranging function. Provide software ground station, support picture-in-picture display dual-channel video, control PTZ and camera directly via network, support local TF storage and network file read and write operation, support dual-channel synchronous video, support a variety of picture-in-picture mode and false color switch.

Functions & Features

1. Three-axis stabilization pod
2. 1500 meters laser ranging, video overlay
3. Multiple picture-in-picture mode
4. 10 times visible light + thermal imager
5. Ground-side software display and control integrated
6. Single TF card,dual-channel synchronous video
7. Multiple pseudo-color thermal imaging modes
8. 1080P network output, two-way communication
